High temperature limit switch XWKC

这里可以自定义设置

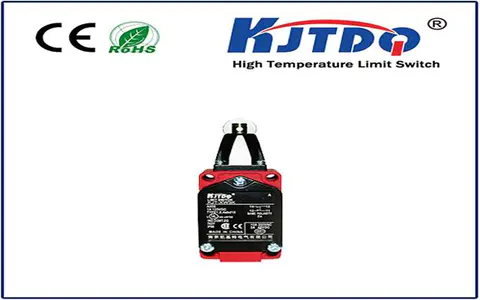

High temperature limit switch XWKC
B站不支持收货地址
B站不支持库存规格
Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production.
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

LIMIT SWITCH

KJT high-temperature resistance travel switch adopts a fully closed contact switch cast by high-temperature resistance material. One set of normally open and the other set of normally closed maximum allowable current 5A/AC 220V (other voltages are predetermined). After special treatment, the contact can be used for a long time in a high-temperature environment without being damaged by oxidation or pollution.


Technical parameter
Rated Current 10A /250VAC
Operating Speed 1mm-2m/s
Operating Frequency

Machinery:120times/minute

Electric30times/minute

Contect Resistance <15 mΩ(mm) (initial stage)
Insulation Resistance >100Ohm (<500VDC )
Withstand Voltage

No connection between terminals.   1000VAC50/60Hz lasts 1 minute

Between the terminal and the contact.  2200VAC50/60Hz lasts 1 minute

Between terminal and no-load current metal. 2200VAC50/60Hz lasts 1 minute

Vibration  Misoperation Endurance          10~55Hz,1.5mm          double-amplitude
Impact

Mechanical Endurance                >1,000m/S²  (>100G)

 Misoperation Endurance            >300m/S²  (>30G)

Temperature  -40°C~+350°C
Humidity <95%RH
Working Life

Machinery:                                     >15million times

 Electric                                       >0.5million times

Protection Degree IEC specificationIP66


Product Size

Wiring diagram
