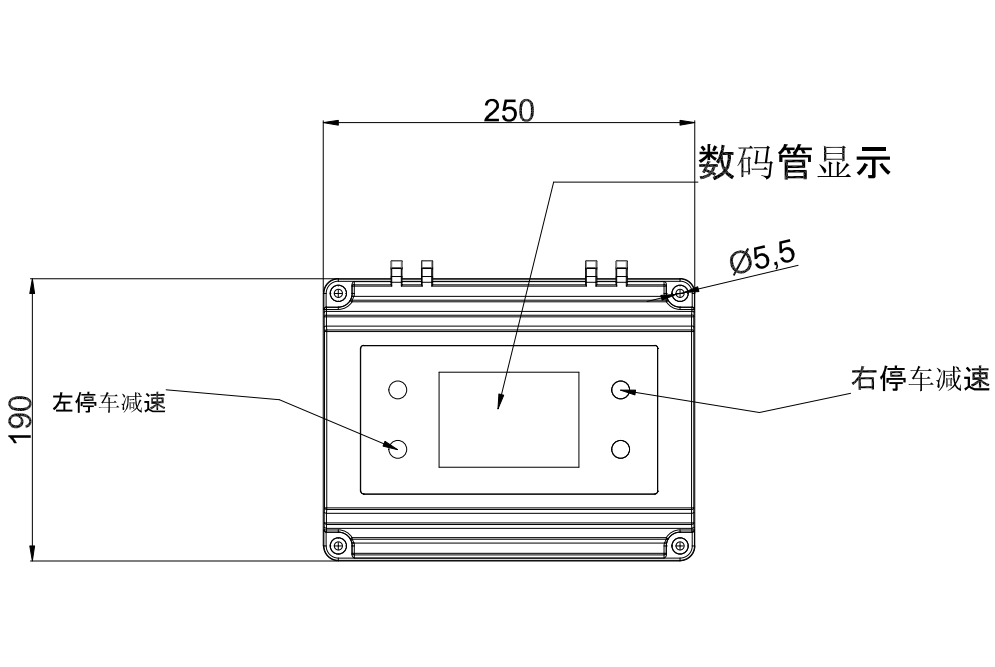

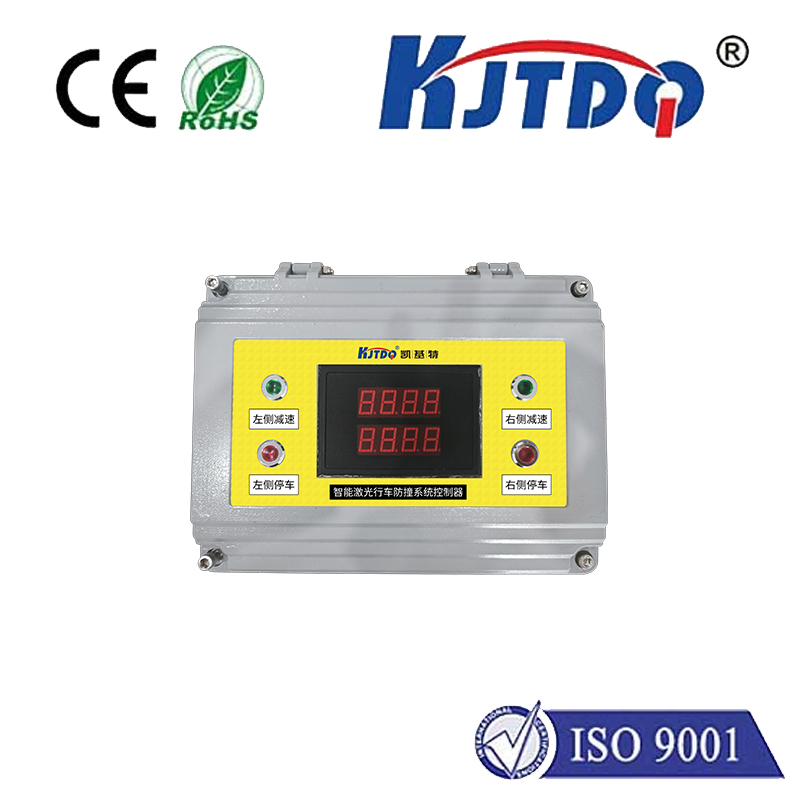

①Controller-Host

The controller mainly processes and calculates the signal received by the laser sensor, and makes corresponding electromechanical actions (voice alarm and relay control) according to the detected distance.

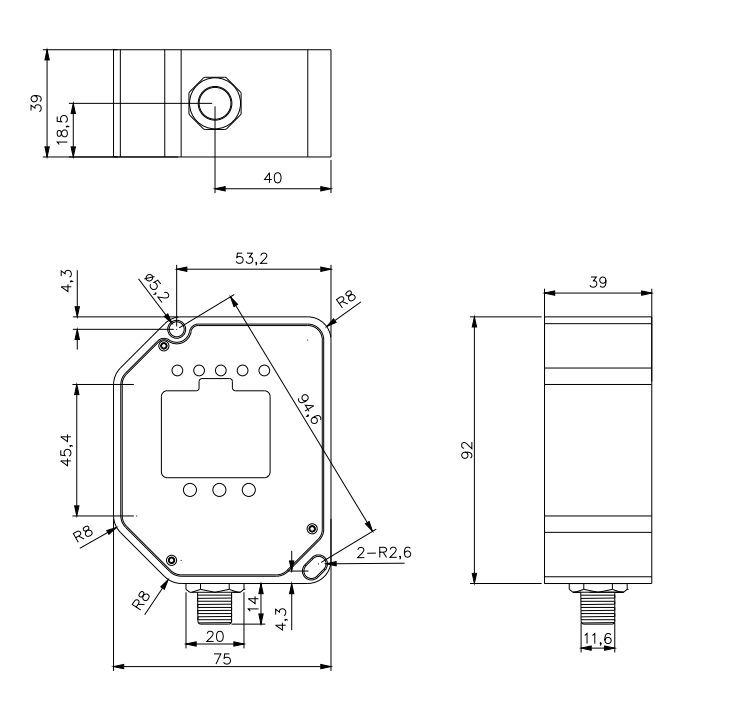

②Laser rangefinder

The function of the laser rangefinder is to irradiate the laser beam to the opposite vehicle or reflector and receive the reflected light reflected by the reflected signal. The reflected light is provided to the controller, which calculates the distance from the vehicle to the object being measured through calculation and processing.

③The function of the reflector is to reflect the laser in a directional manner with minimal loss. (Optional)

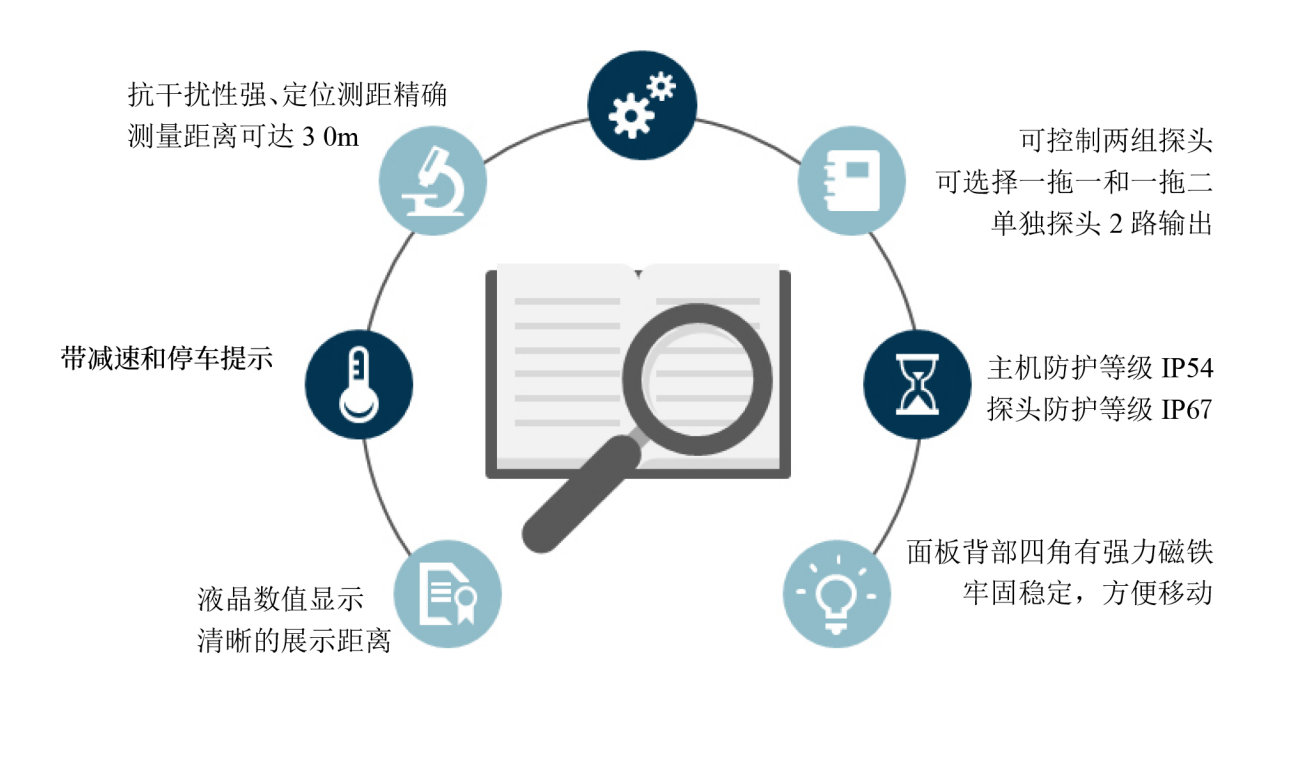

This product is a bidirectional laser sensor with a detection distance of 30 meters (the distance can also be specified by the user). This product supports distance voice prompts, deceleration/stop voice prompts and has four-way relay outputs, which can participate in the automatic control of driving.
