KJT-EXTLS-05C explosion-proof laser ranging displacement sensor (5m range)

这里可以自定义设置

The KJT-EXTLS-05C explosion-proof laser distance sensor can detect vertical or inclined targets within a range of 5 meters and is not affected by color, material or gloss.

B站不支持收货地址

B站不支持库存规格

Trade Terms: FOB

Payment Terms: TT

Delivery Time: 7-10 days

Packing: Polybag/box

Shipping: By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ: 1

Place of Origin: China

Certificate: CE,ROHS,UL

B站不支持优惠卷

Inquire Online
Download

Cancel

B站不支持产品保障

The KJT-EXTLS-05C explosion-proof laser distance sensor can detect vertical or inclined targets within a range of 5 meters and is not affected by color, material or gloss.

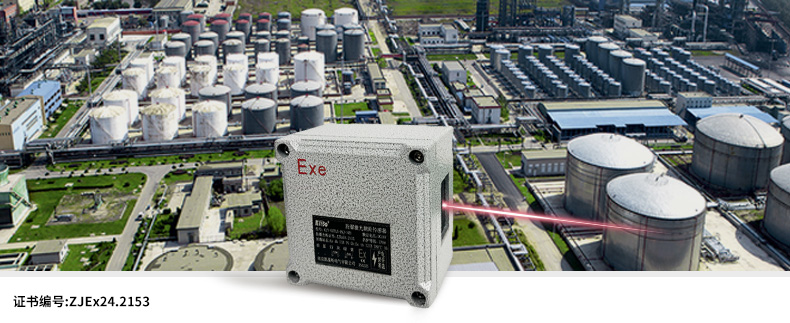

• Explosion-proof level: Ex db ⅡB T6 Gb; Ex tb ⅢB T80℃Db, can easily cope with working conditions requiring explosion-proof, certificate number ZJEx24.2153!

• Over-limit relay output, supports NPN/PNP; voltage, current analog output; RS485 output

• Excellent combination of range, repeatability and accuracy enables highly reliable target detection and precise distance measurement

• OLED display and push-button programming for easy installation, troubleshooting and real-time distance measurement

• Durable IP67 housing, high immunity to ambient light interference and stable performance over a wide range of temperatures provide reliable performance in challenging environments

2a9b55b5f7e1813

model	KJT-EXTLS-05C
Measuring range	0-5M
Explosion-proof grade	Ex db ⅡB T6 Gb; Ex tb ⅢB T80℃Db
Measuring objects	Natural objects
Rated voltage	10-30VDC
Rated current	≤60mA
Resolution	1mm
Repeatability	±1mm
Absolute accuracy	±（1.5mm+ D*5‱）,D is the measured distance
frequency	20Hz
Power consumption	≤2.1W
Response time	1ms
Typical spot size	Point Laser Light spot: <5mm at 10m
Laser light source	650nm， ≤1mW/mm²
Laser Class	Class 1
Pulse Width	＜2ns
monitor	OLED display
Housing Material	Aluminum shell
Operating temperature	-10 ～ +50℃
Storage temperature	-40℃～60℃
Connection Type	Plug-in M12
Enclosure protection grade	IP67

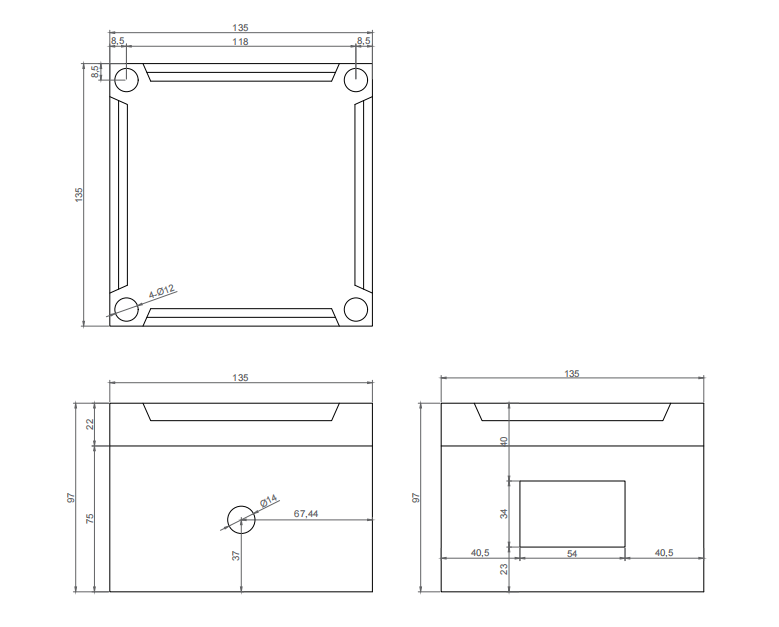

size	135×135×100mm（L×W×H）
Ambient light resistance	100KLux
Average laser service life (at 25°C)	About 20000h

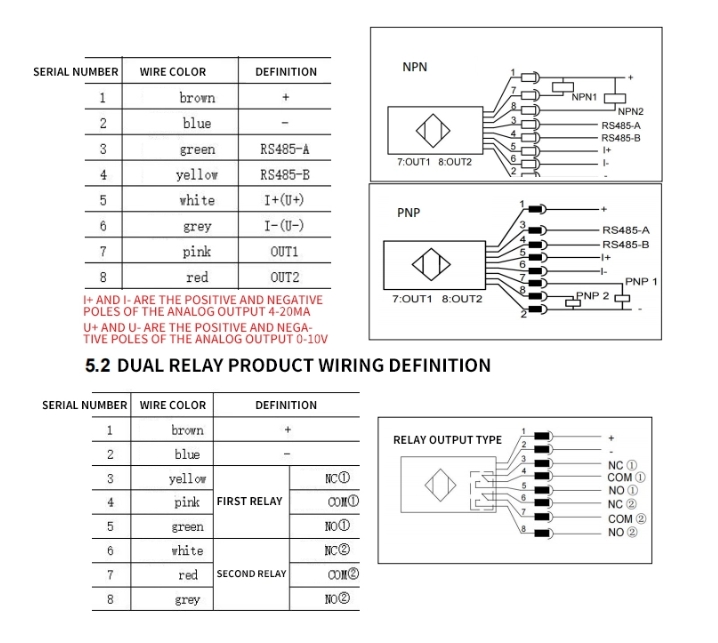

Signal output	Switching output	□NPN □PNP □Relay (optional) Maximum output current≤100 mA
	Analog output	□4-20mA □0-10V（optional） load≤300Ω
	Digital output	□RS485
