KJTYG10-KS laser radar is a new laser ranging solution launched by our company for drones, sweeping robots, industrial robots and other fields. Based on the DTOF ranging principle, this product has the characteristics of small size, low cost, excellent performance, strong resistance to ambient light interference, etc. It can be used as an upgraded replacement product in related fields. This product transmits distance information based on the UART TTL communication interface. It is simple to use, flexible to install and easy to expand. This model adopts a new optoelectronic solution and is very cost-effective.

▼ Features:

• Measuring distance: 20 meters

• Measuring blind area: 3 cm

• Measuring speed: 500Hz

• Measuring accuracy: 1%

• Resolution: 1mm

• Operating temperature: -30~+65℃

• Power supply voltage: 10~36V DC

• Small size: 45.5* 24.5* 27.5mm

• Ambient light resistance: 12 meters @ 100K Lux

Product application: KJTYG10-KS laser radar ranging module can be used for: drone height determination, obstacle avoidance; robot obstacle avoidance; industrial light curtain; AGV obstacle avoidance; high-speed measurement and safety monitoring in the fields of transportation and industrial automation.

Basic function parameters: KJTYG10-KS contains rich functions and parameters

Basic parameters

model	KJTYG10-KS
Product Performance
Working distance	0.03-20m
Ranging frequency	500Hz
5% reflectivity	20m
Resolution	1mm
Repeatability	±10mm
Ambient light resistance	12米@100K Lux
Operating temperature	-30℃~+65℃
Optical performance
Laser light source	Laser tube 905nm
Laser Class	Class 3R
Electrical properties
Supply voltage	10~36V DC
Power consumption	＜0.5W
other

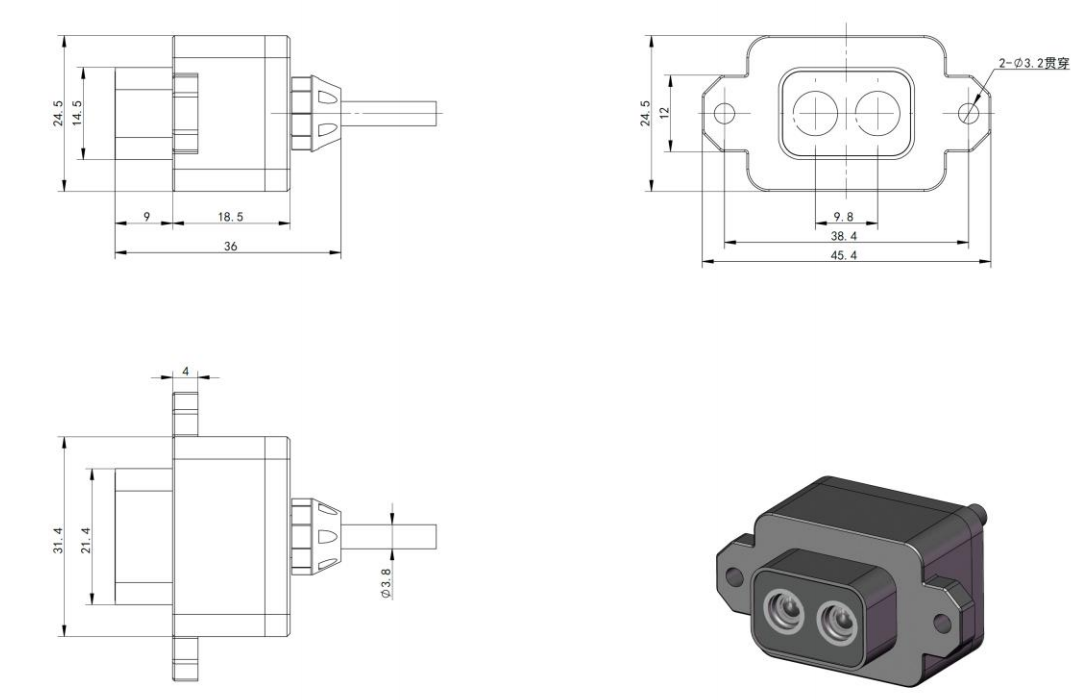

Dimensions (length x width x height)	45.5* 24.5* 27.5mm
Body material	ABS/PC/PMMA
interface	UART、IIC(Optional)
Electrical Connections
Line Sequence	Function
1	TX
2	RX
3	10-36V
4	GND
