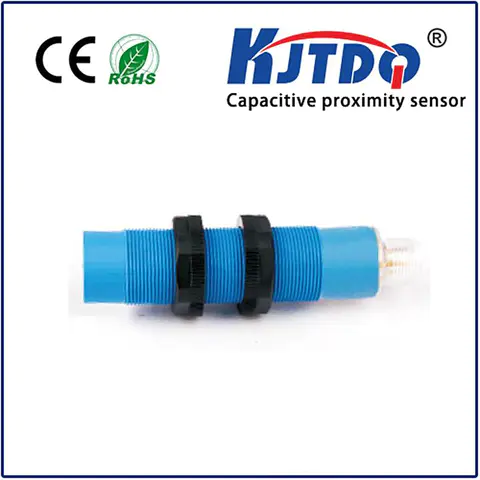

M18 capacitive proximity sensor Unshielded Sn=1-15mm adjustable

这里可以自定义设置
M18 capacitive proximity sensor Unshielded Sn=1-15mm adjustable
B站不支持收货地址
B站不支持库存规格
Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001...
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

 Capacitive proximity sensor



Capacitive proximity sensor can be used without contact to detect any object. Capacitive proximity sensor could detect both of metal objects and non-metallic objects, regardless of color and surface state detected,and  whether the objects be detected is transparent or not,they can test reliably,they have the sensitivity adjustable knobs.Non-metallic containers sealed liquid, powder and other materials can be indirect detection.

Technical parameter

Size

M18*85mm

Mounting

Unshielded

Sensing Distance SN [mm]

1-15mm adjustable

Housing material

ABS

Indicator

With LED

Operating voltage

10-36VDC

Output

PNP/NPN NO/NC/NO+NC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

150mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

50 Hz

Response Time

1.5ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<5%(Sr)

Protection Degree

IP67

Operating Temperature

-25℃-+70℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

Yes

Overload Trip Point

180mA

Connection

M12 4 pin connector





尺寸图





Product Size

Wiring diagram
