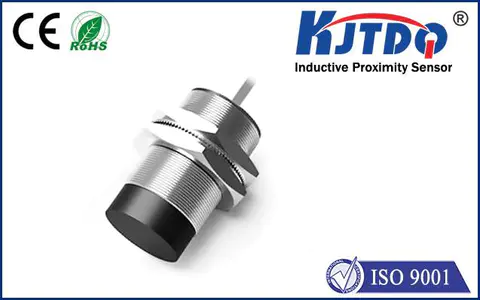

M30 inductive proximity sensor unshielded AC NO NC long distance

Trade Terms: FOBNanjing/Shanghai

Payment Terms: T/T,WesternUnion,PayPal

Delivery Time: 3-15 working days for making sample. 7-20 working days for production

Packing: Standard Export Cartons

Shipping: By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ: 5PCS

Place of Origin: Nanjing City, Jiangsu Province, China

Certificate: CE,RoHS,ISO9001...

Price: Get Latest Price

Get the latest price

Inquire Online

INDUCTIVE

PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size	J30*55mm
Mounting	Unshielded
Sensing Distance SN [mm]	20mm/25mm
Housing material	Brass nickel plated
Indicator	With LED
Operating voltage	90-250VAC
Output	NO/NC
Ripple	<1.8mA
No Load Current	5A(20ms)
Max.Load Current	400mA
Leakage Current	<1.8mA
Voltage Drop	<8V
Switching Frequency	400 Hz
Response Time	10ms
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<3%(Sr)
Protection Degree	IP67
Operating Temperature	-25℃-+70℃
Temperature Drift	<10%(Sr)
Short Circuit Protection	YES
Overload Trip Point	400mA
Connection	PVC Cable 2M

Product Size

Wiring diagram
