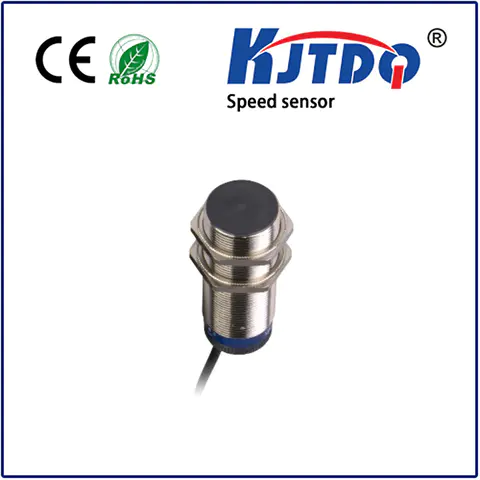

Speed control switch
Monitoring the rotational speed of the switch from inhibition referred speed switch for belt conveyor, bucket upgrade, propeller, grinders, crushers, pumps,Centrifugal dry fire, mixer monitoring skid, belt breakage, shaft cut and overload.
Action principle
Switch outputs a signal by the comparator treatment, and the measured object movement also generates an oscillation frequency into the comparator, when the frequency of the oscillation frequency of the measured object set frequency is less than the speed switch
Switch is turned on; when the vibration frequency is greater than the measured object speed switch setting frequency switch is closed o KG-Z-K1 objects suitable for detecting low-speed, low speed when the object moves
The preset speed, the switch output is open.
Note: All speed switch shall be energized delay 9 seconds to make the starting line monitoring of machines and equipment. Figure 1 is a broken link monitoring.
Adjustment
Switch enables multi-turn potentiometer to adjust the frequency increases clockwise, counterclockwise rotation frequency is reduced
Technical parameter | |
Range of product | OsiSense XS |
Series name | Application |
Sensor type | Speed Switch |
Device application | Rotation monitoring |
Sensor name | XSA |
Sensor design | Cylindrical M30 |
Size | 81mm |
Body type | Fixed |
Detector flush mounting acceptance | Flush mountable |
Material | Metal |
Enclosure material | Nickel plated brass |
Type of output signal | Discrete |
Wiring technique | 3-wire |
[Sn] nominal sensing distance | 10MM |
Discrete output function | 1NC |
Output circuit type | DC |
Discrete output type | PNP |
Electrical connection | Cable |
Cable length | 2M |
[Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
IP degree of protection | IP67 conforming to IEC 60529 |
Thread type | M30 x 1.5 |
Detection face | Frontal |
Front material | PPS |
Adjustable frequency range | 120…3000 cyc/mn |
Operating zone | 0…8 mm |
Differential travel | 3...15% of Fr |
Repeat accuracy | 3% of Sr |
Cable composition | 3 x 0.34 mm² |
Wire insulation material | PvR |
Status LED | Output state: 1 LED (red) |
Supply voltage limits | 10…58 V DC |
Switching frequency | <= 800 Hz |
Maximum voltage drop | <1.8 V (closed) |
Current consumption | 0...15 mA no-load |
Run-up delay at power-up | 9 s standard |
Marking | CE |
Threaded length | 57MM |
Height | 30MM |
Length | 81MM |
Product certifications | CCC CSA UL |
Ambient air temperature for operation | -25…70 °C |
Ambient air temperature for storage | -40…85 °C |
