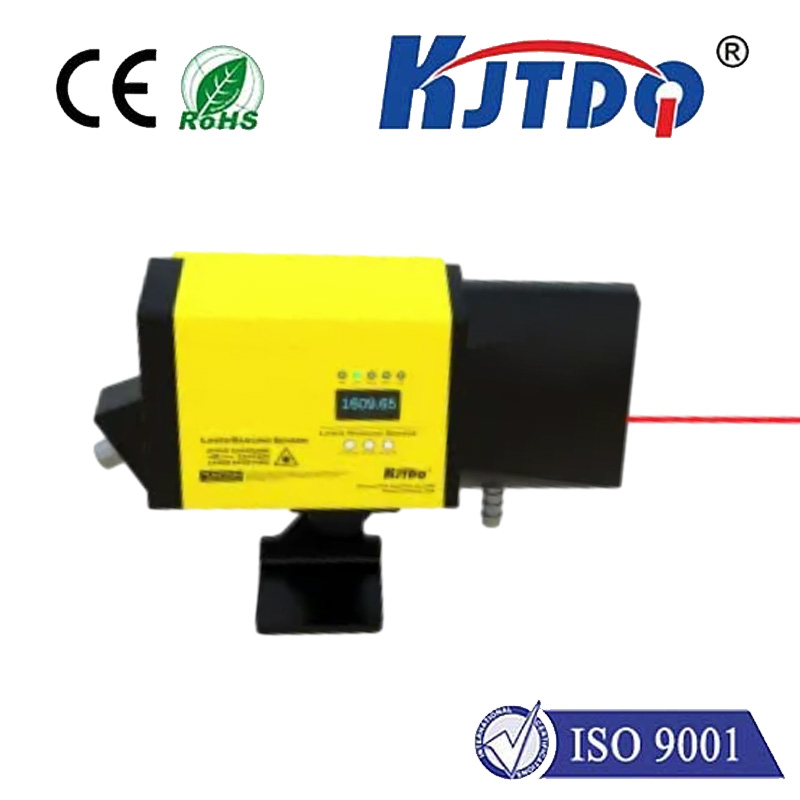

Laser Hot Metal Detector

这里可以自定义设置

-Laser hot metal detector is easy to use; -Power When the sensor is powered normally, the green light is always on; -Signal When the detection target distance is within the set range, the blue light is always on; -Alarm When there is an operation error or the sensor is not working properly, the red light is always on; - The red indicator laser is used to aim at the target. After power is turned on, the red light will remain on for 20 minutes and then automatically turn off. The red light can be re-lit through the debug port

B站不支持收货地址

B站不支持库存规格

Trade Terms: FOB

Payment Terms: TT

Delivery Time: 7-10 days

Packing: Polybag/box

Shipping: By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ: 1

Place of Origin: China

Certificate: CE,ROHS,UL

B站不支持优惠卷

Inquire Online
Download

Cancel

B站不支持产品保障

-Laser hot metal detector is easy to use;

-Power When the sensor is powered normally, the green light is always on;

-Signal When the detection target distance is within the set range, the blue light is always on;

-Alarm When there is an operation error or the sensor is not working properly, the red light is always on;

- The red indicator laser is used to aim at the target. After power is turned on, the red light will remain on for 20 minutes and then automatically turn off. The red light can be re-lit through the debug port

1734425396758eec

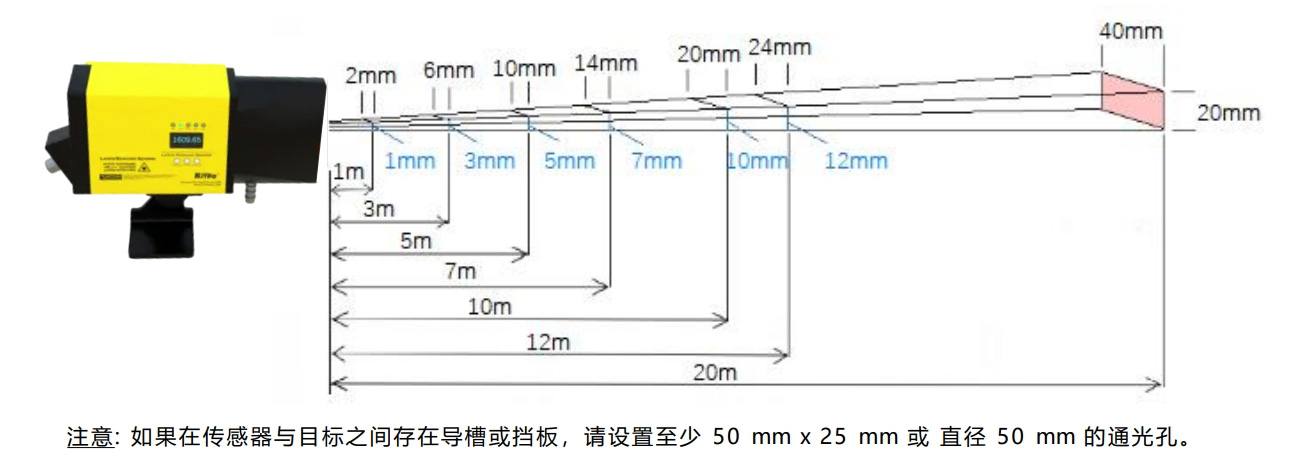

Detection range				15 meters (1% reflectivity) 50 meters (10% reflectivity) 120 meters (80% reflectivity)
Maximum target temperature				1250℃
Detection Error				±3cm
Detection resolution				1cm
Laser transmitter				Wavelength 905 nm, invisible infrared light, class 1
Red hot indicator laser				≤1mW class 2; The red light turns on after power-on and automatically turns off after 20 minutes
Detection output				1 PNP output (300mA) 1 NPN output (500mA) 1 channel 4-20mA analog output 1 RS232 serial port 1 debug port (3.3VTTL serial port)
Alarm output				When there is an operation error or the sensor is not working properly, the red light is always on
Display and settings				3 status indicators (Power, Signal, Alarm), RS232 port and TTL serial port can set baud rate, frequency, PNP, NPN, 4-20mA related parameters
Operating voltage				18-36VDC (220VAC optional)
Power consumption				<2W

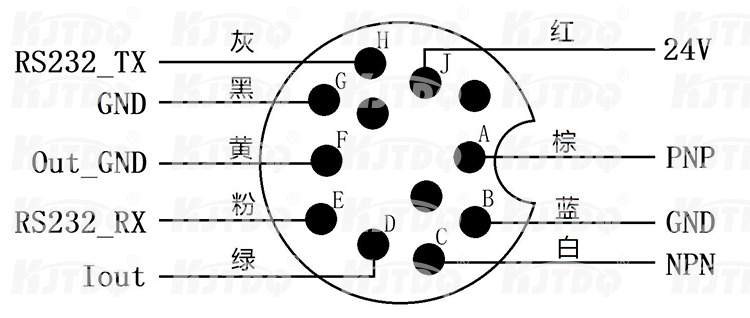

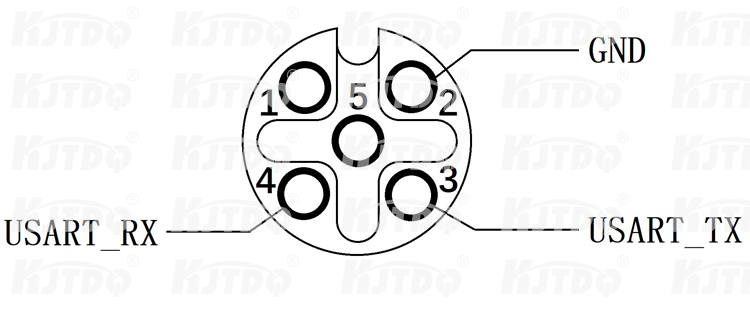

interface				Power supply signal port: 12-pin aviation plug Debug port: 5-pin aviation plug

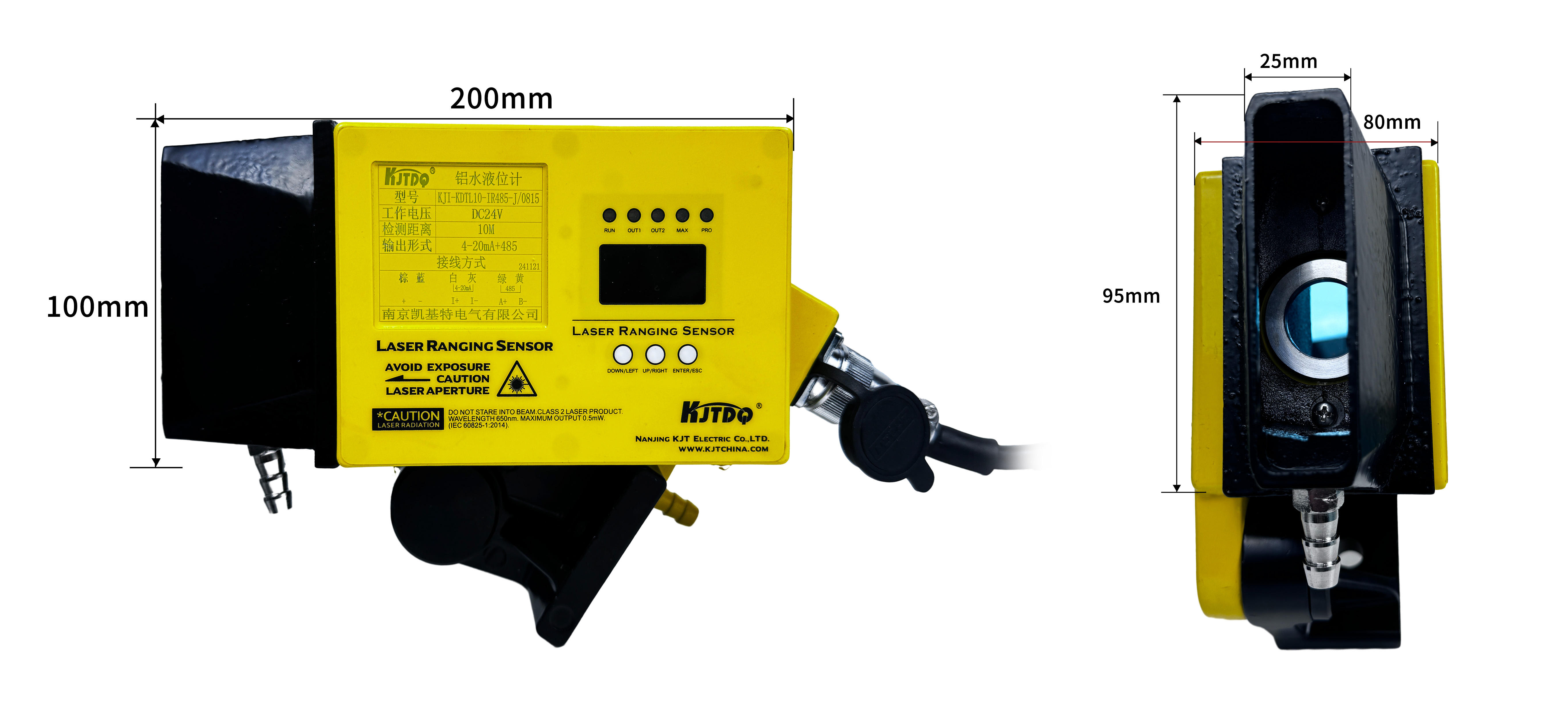

weight				2kg
Protect				DC input polarity protection, level output short circuit and overload protection
Protection level				IP 67 (cast aluminum housing)
Operating temperature				-40℃ — +85 ℃
