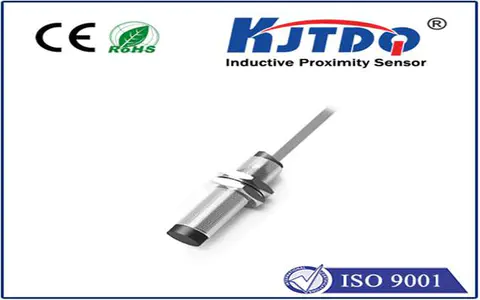

M12 inductive proximity sensor unshielded AC NO NC Sn=4mm IP67 EI1202NPOSS E2EQ-X3D1-M1GJ E2EH-X3B1-M1 ICB12S30F02NOM1 E2E2-X18MY1-M4 E2E-X3D1-N E2EW-X7C112 2M ICB12S30F04NO E2F-X2E1 IA12ESN04UC E2E-X5ME1

这里可以自定义设置
M12 inductive proximity sensor unshielded AC NO NC Sn=4mm IP67 EI1202NPOSS E2EQ-X3D1-M1GJ E2EH-X3B1-M1 ICB12S30F02NOM1 E2E2-X18MY1-M4 E2E-X3D1-N E2EW-X7C112 2M ICB12S30F04NO E2F-X2E1 IA12ESN04UC E2E-X5ME1
B站不支持收货地址
B站不支持库存规格
Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production.
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
该产品后台详情无内容

INDUCTIVE

PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size M12*45mm
Mounting Unshielded
Sensing Distance SN [mm] 4 mm
Housing material Brass nickel plated
Indicator With LED
Operating voltage 90-250VAC
Output NO/NC
Ripple <10%
No Load Current <10mA
Max.Load Current 400mA
Leakage Current <1.8mA
Voltage Drop <8VAC AT400mA
Switching Frequency 25 Hz
Response Time 10 ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5%(Sr)
Protection Degree IP67
Operating Temperature -25℃-+70℃
Temperature Drift <10%(Sr)
Short Circuit Protection Yes
Overload Trip Point 120mA
Connection PVC Cable 2M


Product Size

Wiring diagram
