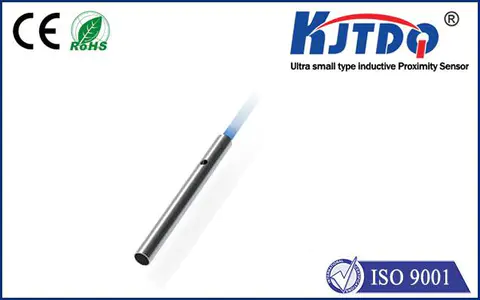

M3 ultra small short inductive proximity sensor shielded long sensing distance

这里可以自定义设置
M3 ultra small short inductive proximity sensor shielded long sensing distance
B站不支持收货地址
B站不支持库存规格
Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001...
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
该产品后台详情无内容

ULTRA SMALL

PROXIMITY SENSOR

The ultra small proximity sensor is based on the conversion of optical quantity and USES optical signal as

the carrier of transformation and transmission.

Technical parameter

Size

J3*15mm

Mounting

Shielded

Sensing Distance SN [mm]

0.8/1mm

Housing material

Stainless steel

Indicator

With LED

Operating voltage

10-36VDC

Output

PNP/NPN NO/NC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

100mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

24Hz

Response Time

0.1ms/0.3ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3%(Sr)/<5%(Sr)

Protection Degree

IP67

Operating Temperature

-25℃-+70℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

200mA

Connection

PVC Cable 2M

Product Size

Wiring diagram
