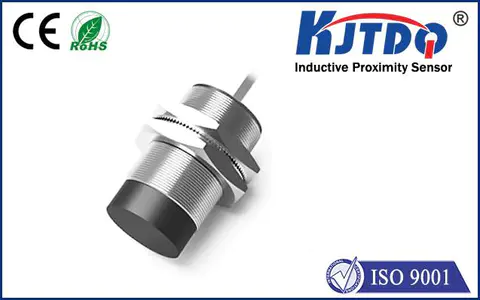

M30 inductive proximity sensor unshielded AC NO NC Sn15mm

M30 inductive proximity sensor unshielded AC NO NC Sn15mm

M30 inductive proximity sensor unshielded AC NO NC Sn15mm
  • M30 inductive proximity sensor unshielded AC NO NC Sn15mm
  • 2-KJT-dimension-drawing.jpg
  • KJT-connection-diagram-1-ok.jpg

M30 inductive proximity sensor unshielded AC NO NC Sn15mm

Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001...
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

INDUCTIVE

PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter

Size

J30*55mm

Mounting

Unshielded

Sensing Distance SN [mm]

15mm

Housing material

Brass nickel plated

Indicator

With LED

Operating voltage

90-250VAC

Output

NO/NC

Ripple

<1.8mA

No Load Current

5A(20ms)

Max.Load Current

400mA

Leakage Current

<1.8mA

Voltage Drop

<8V

Switching Frequency

100 Hz

Response Time

10ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<5%(Sr)

Protection Degree

IP67

Operating Temperature

-25℃-+70℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

400mA

Connection

PVC Cable 2M
