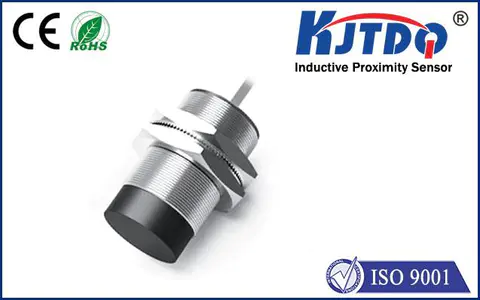

    M30 inductive proximity sensor unshielded PNP/NPN NO NC Sn15mm

    这里可以自定义设置
    M30 inductive proximity sensor unshielded PNP/NPN NO NC Sn15mm
    B站不支持收货地址
    B站不支持库存规格
    Trade Terms
    FOB Nanjing/Shanghai
    Payment Terms
    T/T, Western Union, PayPal
    Delivery Time
    3-15 working days for making sample. 7-20 working days for production
    Packing
    Standard Export Cartons
    Shipping
    By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
    MOQ
    5PCS
    Place of Origin
    Nanjing City, Jiangsu Province, China
    Certificate
    CE,RoHS,ISO9001...
    参数暂无数据
    多属性暂无数据
    B站不支持优惠卷
    暂无分享
    B站不支持产品保障
    该产品后台详情无内容

    INDUCTIVE

    PROXIMITY SENSOR

    KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

    Technical parameter

    Size

    J30*55mm

    Mounting

    Unshielded

    Sensing Distance SN [mm]

    15mm

    Housing material

    Brass nickel plated

    Indicator

    With LED

    Operating voltage

    10-36VDC

    Output

    PNP/NPN NO/NC

    Ripple

    <10%

    No Load Current

    <10mA

    Max.Load Current

    200mA

    Leakage Current

    <0.01mA

    Voltage Drop

    <1.5V

    Switching Frequency

    200 Hz

    Response Time

    0.5ms

    Switching Hysteresis

    <15%(Sr)

    Repeat Accuracy

    <3%(Sr)

    Protection Degree

    IP67

    Operating Temperature

    -25℃-+70℃

    Temperature Drift

    <10%(Sr)

    Short Circuit Protection

    YES

    Overload Trip Point

    200mA

    Connection

    PVC Cable 2M

    Product Size

    Wiring diagram
