M8 inductive proximity sensor shielded 10-36VDC PNP NPN NO NC Sn=1mm

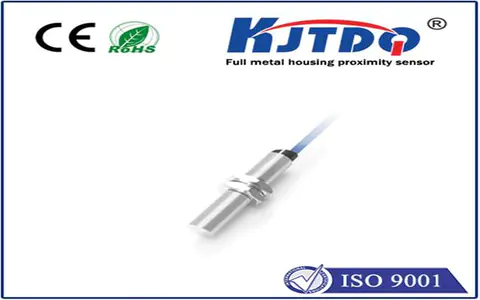

M8 inductive proximity sensor shielded 10-36VDC PNP NPN NO NC Sn=1mm

M8 inductive proximity sensor shielded 10-36VDC PNP NPN NO NC Sn=1mm
  • M8 inductive proximity sensor shielded 10-36VDC PNP NPN NO NC Sn=1mm
  • 58KJT dimension drawing.png
  • 58KJT connection diagram.jpg

M8 inductive proximity sensor shielded 10-36VDC PNP NPN NO NC Sn=1mm

Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production.
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

INDUCTIVE

PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size M8*45mm
Mounting Shielded
Sensing Distance SN [mm] 1 mm
Housing material Stainless steel
Indicator With LED
Operating voltage 10-36VDC
Output PNP/NPN NO/NC
Ripple <10%
No Load Current <10mA
Max.Load Current 200mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 400 Hz
Response Time 0.5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3%(Sr)
Protection Degree IP67
Operating Temperature -25℃-+70℃
Temperature Drift <10%(Sr)
Short Circuit Protection Yes
Overload Trip Point 180mA
Connection PVC Cable 2M


Product Size

Wiring diagram
