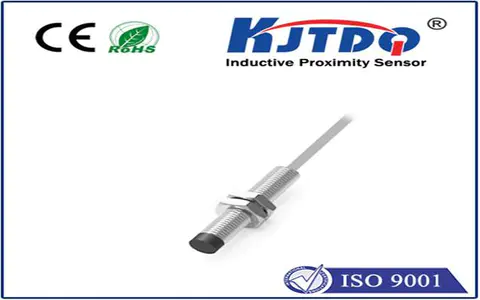

INDUCTIVE
PROXIMITY SENSOR
KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.
Technical parameter | |
Size | M8*45mm |
Mounting | Unshielded |
Sensing Distance SN [mm] | 4 mm |
Housing material | Brass nickel plated |
Indicator | With LED |
Operating voltage | 10-36VDC |
Output | NO/NC |
Ripple | <10% |
No Load Current | <10mA |
Max.Load Current | 200mA |
Leakage Current | <0.8mA |
Voltage Drop | <6V |
Switching Frequency | 1K Hz |
Response Time | 0.3ms |
Switching Hysteresis | <15%(Sr) |
Repeat Accuracy | <3%(Sr) |
Protection Degree | IP67 |
Operating Temperature | -25℃-+70℃ |
Temperature Drift | <10%(Sr) |
Short Circuit Protection | Yes |
Overload Trip Point | 120mA |
Connection | PVC Cable 2M |
