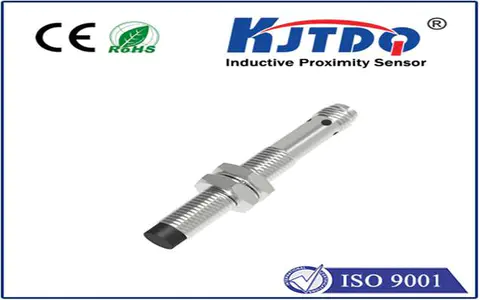

    M8 inductive proximity sensor unshielded DC PNP NPN NO NC connector

    这里可以自定义设置
    M8 inductive proximity sensor unshielded DC PNP NPN NO NC connector
    B站不支持收货地址
    B站不支持库存规格
    Trade Terms
    FOB Nanjing/Shanghai
    Payment Terms
    T/T, Western Union, PayPal
    Delivery Time
    3-15 working days for making sample. 7-20 working days for production.
    Packing
    Standard Export Cartons
    Shipping
    By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
    MOQ
    5PCS
    Place of Origin
    Nanjing City, Jiangsu Province, China
    Certificate
    CE,RoHS,ISO9001
    参数暂无数据
    多属性暂无数据
    B站不支持优惠卷
    暂无分享
    B站不支持产品保障
    该产品后台详情无内容

    INDUCTIVE

    PROXIMITY SENSOR

    KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

    Technical parameter
    Size M8*45mm
    Mounting Unshielded
    Sensing Distance SN [mm] 2 mm
    Housing material Brass nickel plated
    Indicator With LED
    Operating voltage 10-36VDC
    Output PNP/NPN NO/NC
    Ripple <10%
    No Load Current <10mA
    Max.Load Current 200mA
    Leakage Current <0.01mA
    Voltage Drop <1.5V
    Switching Frequency 2K Hz
    Response Time 0.1ms
    Switching Hysteresis <15%(Sr)
    Repeat Accuracy <3%(Sr)
    Protection Degree IP67
    Operating Temperature -25℃-+70℃
    Temperature Drift <10%(Sr)
    Short Circuit Protection Yes
    Overload Trip Point 180mA
    Connection M8 3 pin connector


    Product Size

    Wiring diagram
