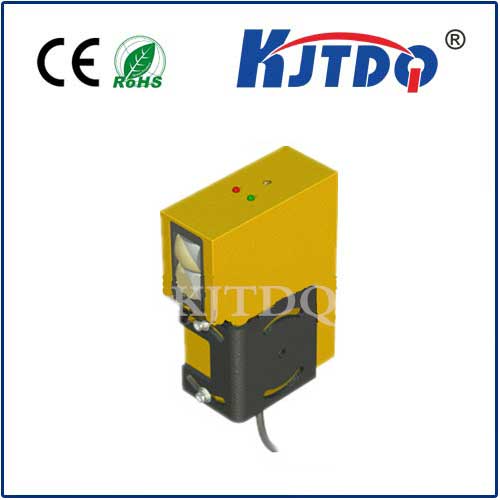

Visible red light cold metal detector

这里可以自定义设置

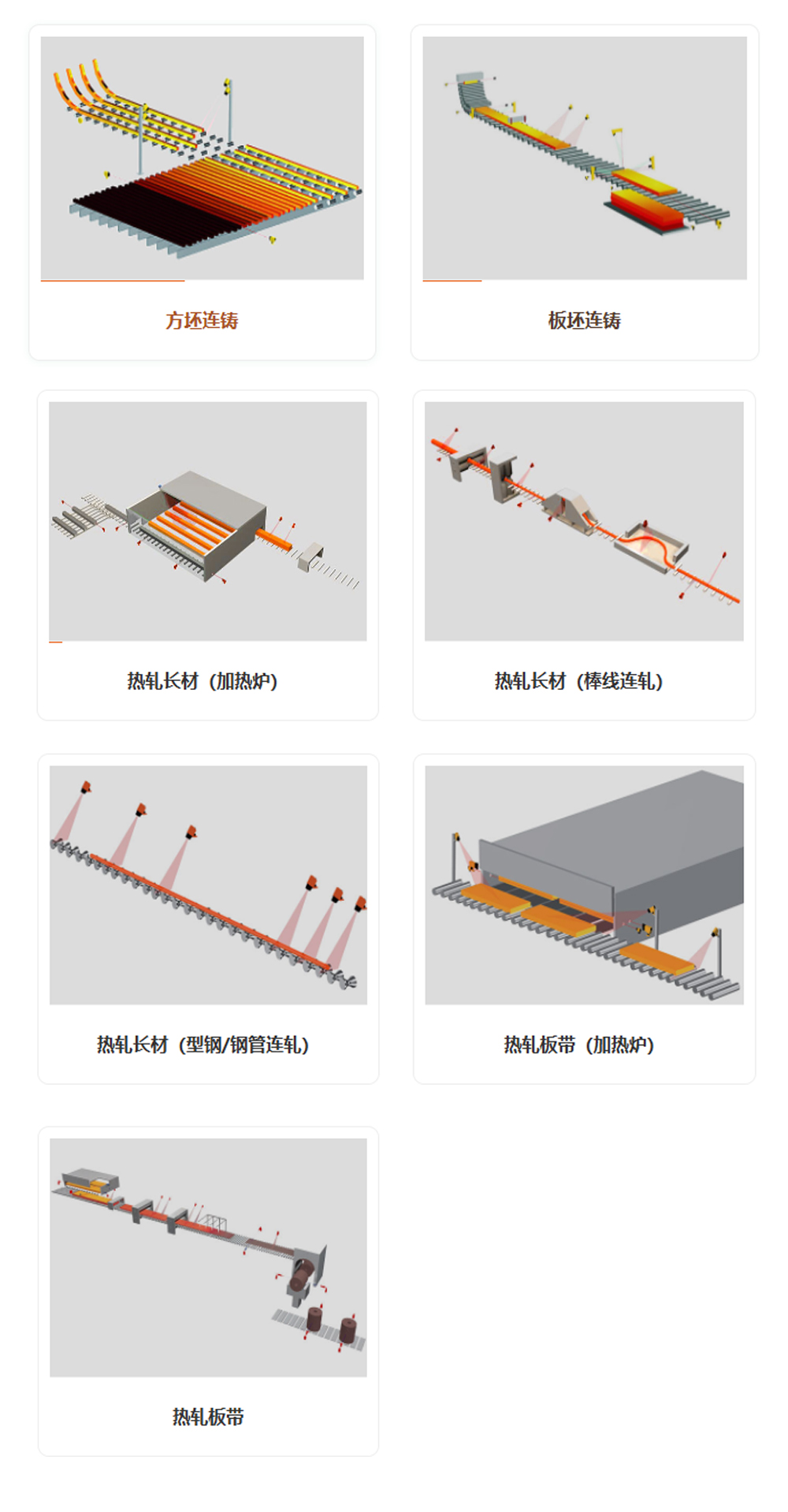

Cold metal detectors are mainly used in metallurgical production lines. They detect the position of the workpiece and output a switch control signal (contact or level signal) to participate in automatic control. Cold metal detectors can be divided into two types according to the light source: visible red light type cold metal detectors and infrared light type cold metal detectors. Cold metal detectors can be divided into feedback reflection type (R), through-beam type (T), and direct reflection type (D) according to the detection form.

B站不支持收货地址

B站不支持库存规格

Trade Terms: FOB

Payment Terms: TT

Delivery Time: 7-10 days

Packing: Polybag/box

Shipping: By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ: 1

Place of Origin: China

Certificate: CE,ROHS,UL

B站不支持优惠卷

Inquire Online
Download

Cancel

B站不支持产品保障

Cold metal detectors can be divided into two types according to the light source: visible red light type cold metal detectors and infrared light type cold metal detectors.

Cold metal detectors can be divided into feedback reflection type (R), through-beam type (T), and direct reflection type (D) according to the detection form.

Shell type				Square
Working power supply				DC12V、DC24V、A110CV、A220CV；±10% Rated voltage
Operating temperature				-25℃～+70℃
Detection form				Feedback Reflective（R）	Through Beam（T）	Direct reflection（D）
Check distance				12m（SP-17-type reflector） 6m（SP-18 reflector）	15m	≤1.2m

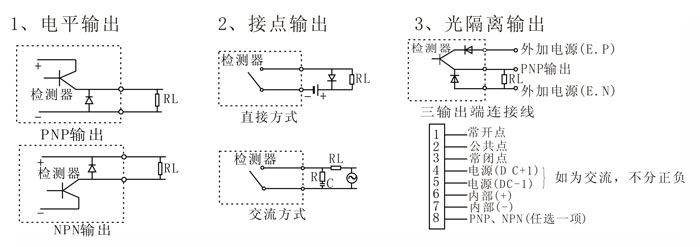

Output format	contact（Z）			Contact Capacity：AC250V/5A；DC30V/5A
	Level	12V	Load current 100mA	PNP Normally Open：A(P)；PNP Normally Closed：B(P)
			Load current 100mA	NPN Normally Open：A(N)；NPN Normally Closed：B(N)
		24V	Load current 100mA	PNP Normally Open：C(P)；PNP Normally Closed：D(P)
			Load current 100mA	NPN Normally Open：C(N)；NPN Normally Closed：C(N)
	Optical Isolation			Maximum input operating voltage ≤DC27V，Load current100mA
Indicator Lights				≥20MΩ（When DC500V）
Insulation resistance				≤5W
Power consumption				contact＜20ms；Level and Isolation＜2ms
Response time				Incandescent lamp 10000Lx
Anti-light interference				Instantaneous clockwise rotation, from low to high
Sensitivity				DC input polarity protection, level output short circuit and overload protection
Operating Angle				Azimuth angle can be adjusted arbitrarily, elevation angle ±45°

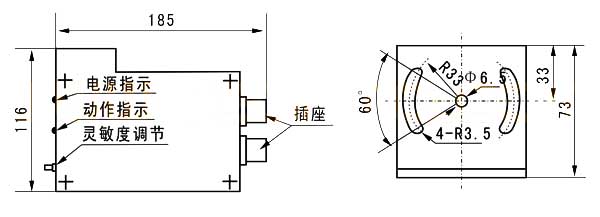

Dimensions				Length × width × height 185mm × 116mm × 73mm
