The KJT laser sensor (laser photoelectric switch) is a sensor that uses laser technology for measurement. It consists of a laser, a laser detector and a measuring circuit. Laser sensor is a new type of measuring instrument, which has the advantages of contactless long-distance measurement, fast speed, high accuracy, large range, and strong resistance to optical and electrical interference;

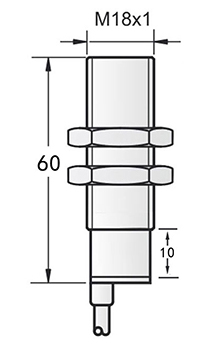

Thread Size | M18X1.5 |
Detection distance | Diffuse Reflective: Sn=300mm |
Detecting spot size | <4mm |
Operating voltage | 10-30VDC |
No load current | <9mA |
Suitable for large load currents | 150mA |
Leakage current | <0.01mA |
Voltage drop | <1V |
Switching Frequency | 120Hz |
Respond time | 0.1mS /0.1mS |
Switching hysteresis | <15%(sr) |
Repeatability | <1.0% (sr) |
Protection class | IP 67 |
Operating ambient temperature | -5℃—+50℃ |
Temperature drift | <10%(sr) |
Short circuit protection | Yes |
LED light display | Yes |
Shell material | Stainless steel Plastic |
Connector method | Take-out type |
