    M18 Laser Photoelectric Sensor (Diffuse Reflective) equivalent to E3FA-DN24

    这里可以自定义设置
    M18 Laser Photoelectric Sensor (Diffuse Reflective) equivalent to E3FA-DN24
    Thread Size：M18X1.5 Detection distance：Diffuse Reflective: Sn=300mm Detecting spot size：＜4mm Protection class：IP 67 Operating ambient temperature：-5℃—+50℃
    B站不支持收货地址
    B站不支持库存规格
    Trade Terms
    FOB
    Payment Terms
    TT
    Delivery Time
    7-10 days
    Packing
    Polybag/box
    Shipping
    By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
    MOQ
    1
    Place of Origin
    China
    Certificate
    CE,ROHS,UL
    参数暂无数据
    多属性暂无数据
    B站不支持优惠卷
    暂无分享
    B站不支持产品保障

    The KJT laser sensor (laser photoelectric switch) is a sensor that uses laser technology for measurement. It consists of a laser, a laser detector and a measuring circuit. Laser sensor is a new type of measuring instrument, which has the advantages of contactless long-distance measurement, fast speed, high accuracy, large range, and strong resistance to optical and electrical interference;


    主要技术参数

    Thread SizeM18X1.5
    Detection distanceDiffuse Reflective: Sn=300mm
    Detecting spot size＜4mm
    Operating voltage10-30VDC
    No load current<9mA
    Suitable for large load currents150mA
    Leakage current<0.01mA
    Voltage drop<1V
    Switching Frequency120Hz
    Respond time0.1mS /0.1mS
    Switching hysteresis<15%（sr）
    Repeatability<1.0% （sr）
    Protection classIP 67
    Operating ambient temperature-5℃—+50℃
    Temperature drift<10%（sr）
    Short circuit protectionYes
    LED light displayYes
    Shell materialStainless steel Plastic
    Connector methodTake-out type

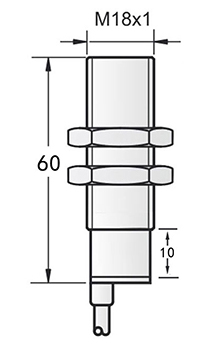

    尺寸图

    3564b96b903ee29ffcb58fce99385147

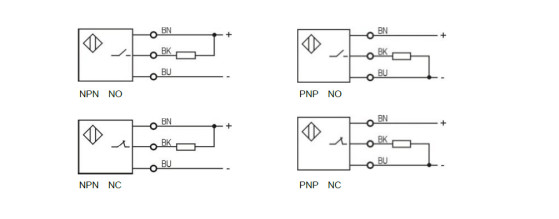

    接线图

    2a3939f8b646476821b5e5d90feefdc6

    c01ea261d3ab5687c17f83cb98f20828_

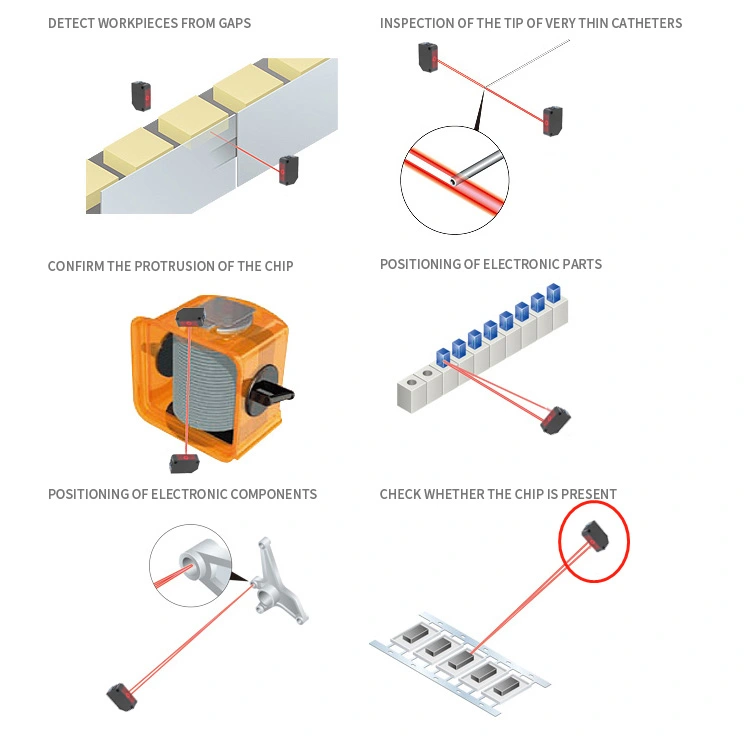

    场景图
