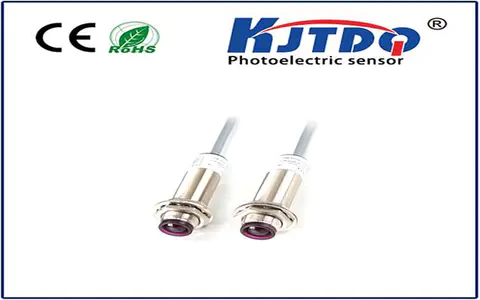

M18 photoelectric sensor through beam PNP NPN NO NC NO+NC Sn=15m

这里可以自定义设置
M18 photoelectric sensor through beam PNP NPN NO NC NO+NC Sn=15m
B站不支持收货地址
B站不支持库存规格
Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production.
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

PHOTOELECTRIC SENSOR

KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.

Technical parameter
Size M18*73mm
Reflection mode Through beam
Sensing Distance SN [m] 15m
Housing material Brass nickel plated
Operating voltage 10-36VDC
Switching Hysteresis <15%
Light source   Infrared light(880nm)
Max Current Output 200mA
No Load Current <30mA
Voltage Drop <2.5V
Leakage Current <1.8mA
Sensitivity Control Trimmer 1tum
Response Time 5ms
Short Circuit Protection YES
Electricity Protection YES
Operating Temperature 0-55℃
Ambient Humidity 35-85%RH
Protection Degree IP67
Sensing Object Size 20*500px White board
Connection PVC Cable 2M


Product Size

Wiring diagram
