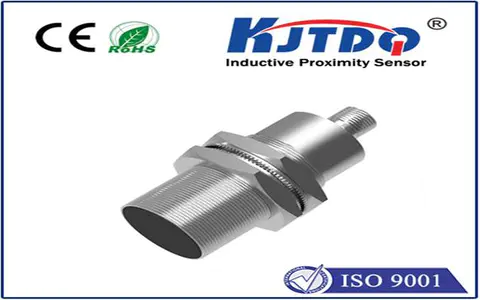

M30 high temperature proximity sensor shielded NO NC -25℃-+120℃ connector

M30 high temperature proximity sensor shielded NO NC -25℃-+120℃ connector

M30 high temperature proximity sensor shielded NO NC -25℃-+120℃ connector
  • M30 high temperature proximity sensor shielded NO NC -25℃-+120℃ connector
  • KJT dimension drawing23.jpg
  • KJT connection diagram23.jpg

M30 high temperature proximity sensor shielded NO NC -25℃-+120℃ connector

Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production.
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

INDUCTIVE

PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size J30*78mm
Mounting Shielded
Sensing Distance SN [mm] 10mm
Housing material Brass nickel plated
Indicator With LED
Operating voltage 10-36VDC
Output NO/NC
Ripple <1.8mA
No Load Current 5A(20ms)
Max.Load Current 400mA
Leakage Current <1.8mA
Voltage Drop <8V
Switching Frequency 100 Hz
Response Time 10ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <5%(Sr)
Protection Degree IP67
Operating Temperature -25℃-+120℃
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 400mA
Connection With M12 4 pin connector


Product Size

Wiring diagram
