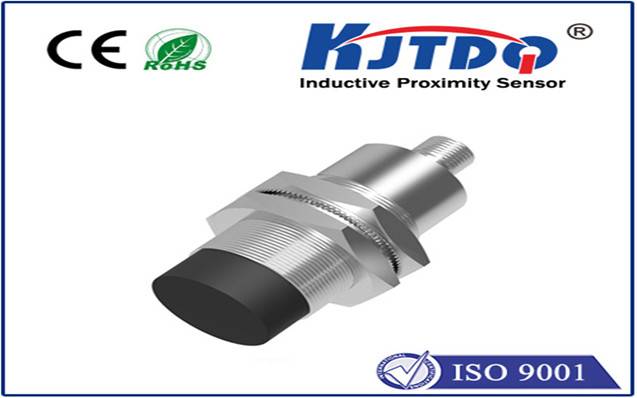

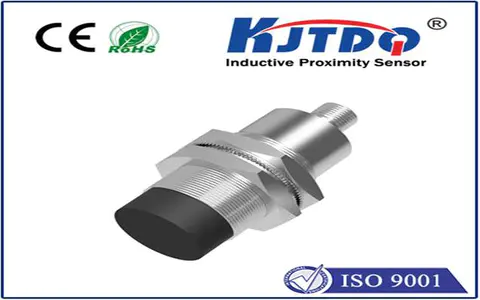

M30 high temperature proximity sensor unshielded PNP NPN NO NC connector

Trade Terms: FOB Nanjing/Shanghai

Payment Terms: T/T, Western Union, PayPal

Delivery Time: 3-15 working days for making sample. 7-20 working days for production.

Packing: Standard Export Cartons

Shipping: By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)

MOQ: 5PCS

Place of Origin: Nanjing City, Jiangsu Province, China

Certificate: CE,RoHS,ISO9001

Price: Get Latest Price

Get the latest price

Inquire Online

INDUCTIVE

PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size	J30*78mm
Mounting	Unshielded
Sensing Distance SN [mm]	15mm
Housing material	Brass nickel plated
Indicator	With LED
Operating voltage	10-36VDC
Output	PNP/NPN NO/NC
Ripple	<10%
No Load Current	<10mA
Max.Load Current	200mA
Leakage Current	<0.01mA
Voltage Drop	<1.5V
Switching Frequency	150 Hz
Response Time	1ms
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<3%(Sr)
Protection Degree	IP67
Operating Temperature	-25℃-+150℃
Temperature Drift	<10%(Sr)
Short Circuit Protection	YES
Overload Trip Point	200mA
Connection	With M12 4 pin connector
