    M30 high temperature proximity sensor unshielded AC NO NC size J30*55mm

    这里可以自定义设置

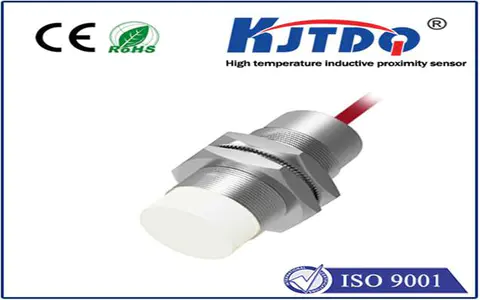

    M30 high temperature proximity sensor unshielded AC NO NC size J30*55mm
    B站不支持收货地址
    B站不支持库存规格
    Trade Terms
    FOB Nanjing/Shanghai
    Payment Terms
    T/T, Western Union, PayPal
    Delivery Time
    3-15 working days for making sample. 7-20 working days for production.
    Packing
    Standard Export Cartons
    Shipping
    By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
    MOQ
    5PCS
    Place of Origin
    Nanjing City, Jiangsu Province, China
    Certificate
    CE,RoHS,ISO9001
    参数暂无数据
    多属性暂无数据
    B站不支持优惠卷
    暂无分享
    B站不支持产品保障
    该产品后台详情无内容

    INDUCTIVE

    PROXIMITY SENSOR

    KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

    Technical parameter
    Size J30*55mm
    Mounting Unshielded
    Sensing Distance SN [mm] 15mm
    Housing material Brass nickel plated
    Indicator With LED
    Operating voltage 90-250VAC
    Output NO/NC
    Ripple <1.8mA
    No Load Current 5A(20ms)
    Max.Load Current 400mA
    Leakage Current <1.8mA
    Voltage Drop <8V
    Switching Frequency 100 Hz
    Response Time 10ms
    Switching Hysteresis <15%(Sr)
    Repeat Accuracy <5%(Sr)
    Protection Degree IP67
    Operating Temperature -25℃-+70℃
    Temperature Drift <10%(Sr)
    Short Circuit Protection YES
    Overload Trip Point 400mA
    Connection 2 M teflon cable/silicon cable


    Product Size

    Wiring diagram

    Product Message
    180°C M18 Non-Flush High Temperature Proximity Sensor
    180°C M18 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J18GW Installation Method：Non-Flush Ambient temperature:：-40~180℃ Detection Distance：8mm Dimension：M18*55 Voltage：10-36VDC / 90-250VAC
    230°C M18 Non-Flush High Temperature Proximity Sensor
    230°C M18 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J18GW Installation Method：Non-Flush Ambient temperature:：-40~230℃ Detection Distance：8mm Dimension：M18*55 Voltage：10-36VDC / 90-250VAC
    120°C M18 NonFlush High Temperature Proximity Sensor
    120°C M18 NonFlush High Temperature Proximity Sensor
    Product Type：KJT-J18GW Installation Method：Non-Flush Ambient temperature:：-40~120℃ Detection Distance：8mm Dimension：M18*55 Working Voltage：10-36VDC / 90-250VAC
    150°C M30Flush High Temperature Proximity Sensor
    150°C M30Flush High Temperature Proximity Sensor
    Product Type：KJT-J30GWM Installation Method：Flush5mm/Non-Flush8mm Ambient temperature:：5mm/8mm Detection Distance：-25~120℃ Dimension：M18*1*55 Working Voltage：10-36VDC / 90-250VAC
    180°C M18 Flush High Temperature Proximity Sensor
    180°C M18 Flush High Temperature Proximity Sensor
    Product Type：KJT-J18GWM Installation Method：Flush Ambient temperature:：-40~180℃ Detection Distance：5mm Dimension：M18*55 Working Voltage：10-36VDC / 90-250VAC
    180°C M30 Non-Flush High Temperature Proximity Sensor
    180°C M30 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J30GW Installation Method：Non-Flush Ambient temperature:：-40~180℃ Detection Distance：15mm Dimension：M30*55 Working Voltage：10-36VDC / 90-250VAC
    120°C M30 Non-Flush High Temperature Proximity Sensor
    120°C M30 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J30GW Installation Method：Non-Flush Ambient temperature:：-40~120℃ Detection Distance：15mm Dimension：M30*55 Working Voltage：10-36VDC / 90-250VAC
    120°C M30 Flush High Temperature Proximity Sensor
    120°C M30 Flush High Temperature Proximity Sensor
    Product Type：KJT-J30GWM Installation Method：Flush Ambient temperature:：-40~120℃ Detection Distance：10mm Detection Distance：M30*55 Working Voltage：10-36VDC / 90-250VAC
    150°C M30 Non-Flush High Temperature Proximity Sensor
    150°C M30 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J18GW Installation Method：Flush 5mm/Non-Flush 8mm Detection Distance：5mm/8mm Ambient temperature:：-40℃~150℃ Dimension：M18*1*55 Working Voltage：10-36VDC / 90-250VAC
    180°C M30 Flush High Temperature Proximity Sensor
    180°C M30 Flush High Temperature Proximity Sensor
    Product Type：KJT-J30GW Installation Method：Flush Ambient temperature:：-40~180℃ Detection Distance：15mm Dimension：M30*55 Working Voltage：10-36VDC / 90-250VAC
    120°C M12 Non-Flush High Temperature Proximity Sensor
    120°C M12 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J12GW Installation Method：Non-Flush Ambient temperature：-40~120℃ Detection Distance：4mm Dimension：M12*50 Working Voltage：10-36V DC/90-250VAC
    180°C M8 Flush High Temperature Proximity Sensor
    180°C M8 Flush High Temperature Proximity Sensor
    Product Type：KJT-J8GWM Installation Method：Flush Ambient temperature：-40~180℃ Detection Distance：1mm Form factor：M8*45 operating voltage：10-36V DC
    150°C M8 Flush High Temperature Proximity Sensor
    150°C M8 Flush High Temperature Proximity Sensor
    Product Type：KJT-J8GWM Installation Method：Flush Ambient temperature：-40~150℃ Detection Distance：1mm Form factor：M8*45 operating voltage：10-36V DC
    180°C M8 Non-Flush high temperature resistant proximity Sensor
    180°C M8 Non-Flush high temperature resistant proximity Sensor
    Product Type：KJT-J8GW Installation Method：Non-Flush Detection Distance：2mm Working Voltage：10-36V DC/90-250VAC Output Mode：NPN/PNP NO/NC Ambient temperature：-40~180℃
    120°C M8 Non-Flush High Temperature Proximity Sensor
    120°C M8 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J8GW Installation Method：Non-Flush Detection Distance：2mm Working Voltage：10-36VDC/90-250VAC Output Mode：Multiple output methods Ambient temperature：-25℃~+120℃ Outlet method：2M silicone wire
    150°C M8 Flush High Temperature Proximity Sensor
    150°C M8 Flush High Temperature Proximity Sensor
    Product Type：KJT-J8GWM Installation Method：Flush Ambient temperature：-40~150℃ Detection Distance：1mm Form factor：M8*45 operating voltage：10-36V DC
    150°C M8 Non-Flush high temperature resistant proximity Sensor
    150°C M8 Non-Flush high temperature resistant proximity Sensor
    Product Type：KJT-J8GW Installation Method：Non-Flush Detection Distance：2mm Working Voltage：10-36VDC / 90-250VAC Output Mode：Multiple output methods Ambient temperature：-25℃~+150℃ Outlet method：2M silicone wire
    120°C M18 Flush Mounted High Temperature Proximity Sensor
    120°C M18 Flush Mounted High Temperature Proximity Sensor
    Product Type：KJT-J18GW Installation Method：Flush Detection Distance：5mm/8mm Working Voltage：10-36VDC / 90-250VAC Output Mode：NPN/PNP NO/NC Ambient temperature：-25~120℃ Outlet method：2M silicone wire
    230°C M30 Flush High Temperature Inductive Proximity Sensor
    230°C M30 Flush High Temperature Inductive Proximity Sensor
    Installation Method：Flush Detection Distance：10mm Working Voltage：10-36VDC / 90-250VAC Output Mode：NPN/PNP NO/NC/NO+NC Switch point offset：≤±10% Hysteresis range：1…20%
    230℃ M30 Non-Flush High Temperature Proximity Sensor
    230℃ M30 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J30GW Installation Method：Non-Flush Detection Distance：15mm Working Voltage：10-36VDC / 90-250VAC Output Mode：NPN/PNP NO/NC Ambient temperature：-25℃~+230℃ Outlet method：2M silicone wire
    150°C M18 Non-Flush High Temperature Proximity Sensor
    150°C M18 Non-Flush High Temperature Proximity Sensor
    Product Type：KJT-J18GW Installation Method：Non-Flush Detection Distance：5mm/8mm Ambient temperature:：-40~150℃ Dimension：M18*1*55 Voltage：10-36V DC
    230°C M18 Flush High Temperature Proximity Sensor
    230°C M18 Flush High Temperature Proximity Sensor
    Product Type：KJT-J18GWM Installation Method：Non-Flush Ambient temperature:：-40~230℃ Detection Distance：5mm Dimension：M18*55 Working Voltage：10-36VDC / 90-250VAC
    M30 high temperature proximity sensor shielded PNP NPN NO NC NO+NC
    M30 high temperature proximity sensor shielded PNP NPN NO NC NO+NC
    M30 high temperature proximity sensor shielded AC NO NC IP67 connector
    M30 high temperature proximity sensor shielded AC NO NC IP67 connector
    M30 high temperature proximity sensor shielded NO NC -25℃-+120℃
    M30 high temperature proximity sensor shielded NO NC -25℃-+120℃
    M30 high temperature proximity sensor shielded PNP NPN NO NC -25℃-+150℃
    M30 high temperature proximity sensor shielded PNP NPN NO NC -25℃-+150℃
    M30 high temperature proximity sensor shielded NO NC -25℃-+120℃ connector
    M30 high temperature proximity sensor shielded NO NC -25℃-+120℃ connector
    M30 high temperature proximity sensor shielded AC NO NC Sn=10mm IP67
    M30 high temperature proximity sensor shielded AC NO NC Sn=10mm IP67
    M30 high temperature proximity sensor unshielded PNP NPN NO NC connector
    M30 high temperature proximity sensor unshielded PNP NPN NO NC connector
    M30 high temperature proximity sensor unshielded NO NC -25℃-+120℃ connector
    M30 high temperature proximity sensor unshielded NO NC -25℃-+120℃ connector
    M30 high temperature proximity sensor unshielded NO NC -25℃-+120℃ Sn=15mm
    M30 high temperature proximity sensor unshielded NO NC -25℃-+120℃ Sn=15mm
    M30 high temperature proximity sensor unshielded PNP NPN NO NC -25℃-+150℃
    M30 high temperature proximity sensor unshielded PNP NPN NO NC -25℃-+150℃
    M30 high temperature proximity sensor unshielded AC NO NC -25℃-+120℃
    M30 high temperature proximity sensor unshielded AC NO NC -25℃-+120℃
