    KJT-FS30 Photoelectric Sensor Limited reflective equivalent to E3Z-L63

    这里可以自定义设置
    KJT-FS30 Photoelectric Sensor Limited reflective equivalent to E3Z-L63
    Photoelectric sensor, rectangular housing, red LED, limited-reflective, transparent glasses detection, 30 ± 20 mm, NPN, Light-ON/Dark-ON, 2 m cable
    B站不支持收货地址
    B站不支持库存规格
    Trade Terms
    FOB
    Payment Terms
    TT
    Delivery Time
    7-10 days
    Packing
    Polybag/box
    Shipping
    By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
    MOQ
    1
    Place of Origin
    China
    Certificate
    CE,ROHS,UL
    参数暂无数据
    多属性暂无数据
    B站不支持优惠卷
    暂无分享
    B站不支持产品保障

    Specifications

    ShapeCuboid
    Sensing methodLimited reflective
    Sensing distance30 mm
    Setting methodManual adjustment
    Connection methodCable
    Cable length2 m

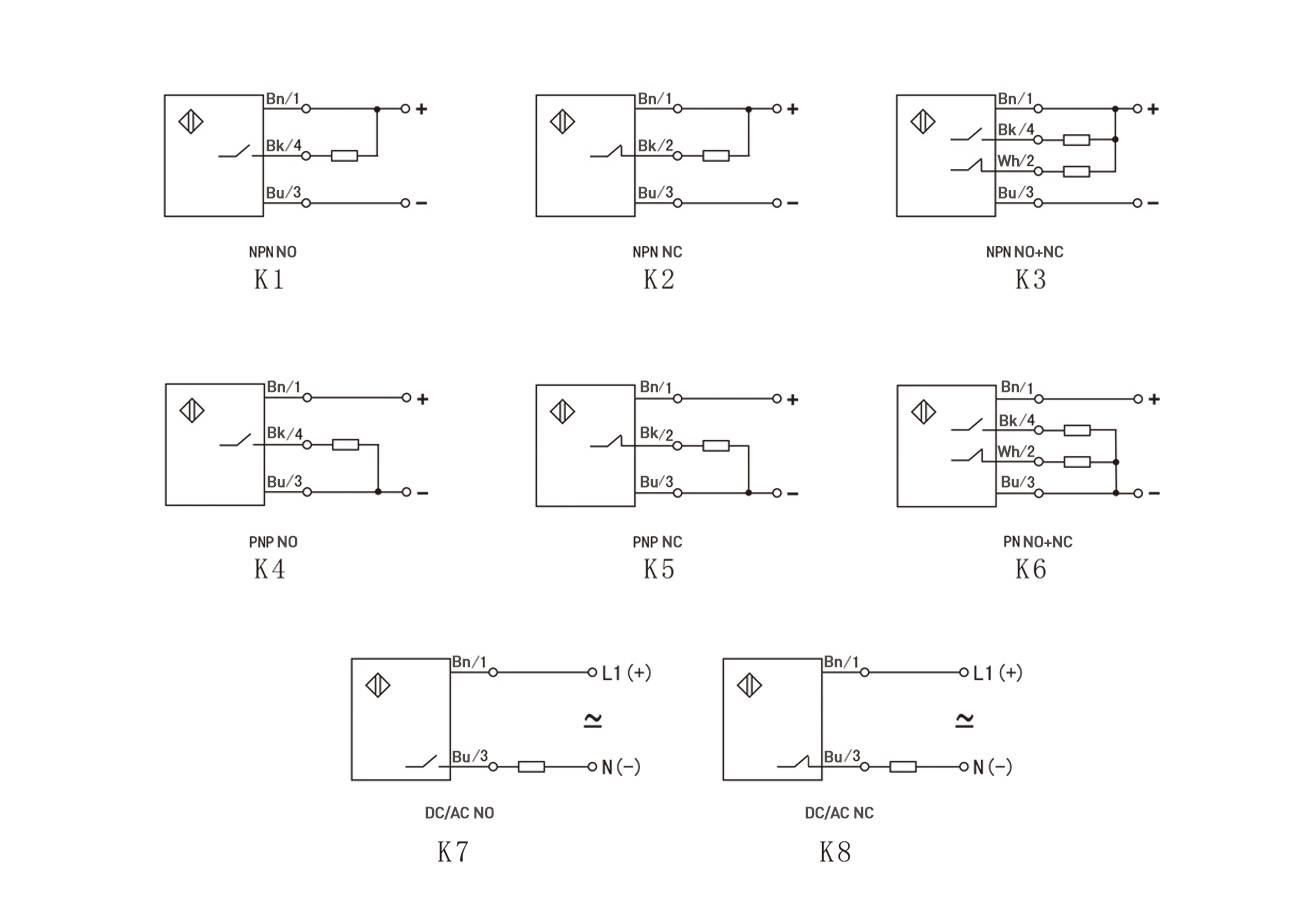

    Output typeNPN
    Operation modeDark-ON, Light-ON
    Response time1 ms
    Material housingPBT
    Thread sizeOther
    Product Width (unpacked)10.8 mm
    Product Height (unpacked)31 mm
    Product Depth (unpacked)20 mm
    Type of lightPolarity free red light
    Spot size2 mm
    Power supply voltage12-24 V
    FeaturesNarrow beam
    Degree of protection (IP)IP67
