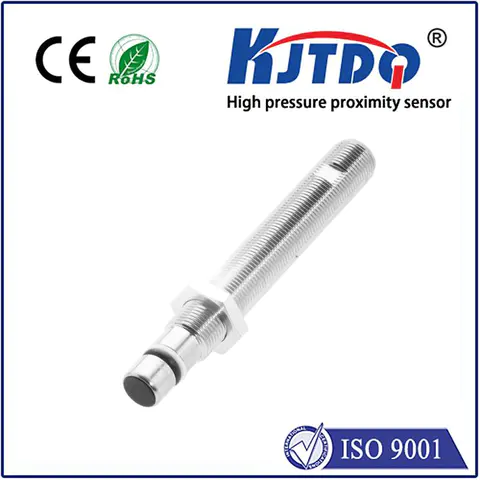

M12 high pressure proximity sensor 500bar L=93mm with M12 connector

这里可以自定义设置
M12 high pressure proximity sensor 500bar L=93mm with M12 connector
B站不支持收货地址
B站不支持库存规格
Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001...
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
该产品后台详情无内容

Inductive proximity sensor



KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.









Technical parameter

Size

M12*93mm

Mounting

Shielded

Sensing Distance SN [mm]

2mm

Housing material

Stainless steel

Pressure endurable

500Bar

Operating voltage

10-30VDC

Output

PNP/NPN NO/NC/ NO+NC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

200mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

1KHz

Response Time

0.5ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3%(Sr)/<3%(Sr)/<5%(Sr)

Protection Degree

IP68

Operating Temperature

-25℃-+85℃

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

200mA

Connection

With M12 4 pin connector


Product Size

Wiring diagram
