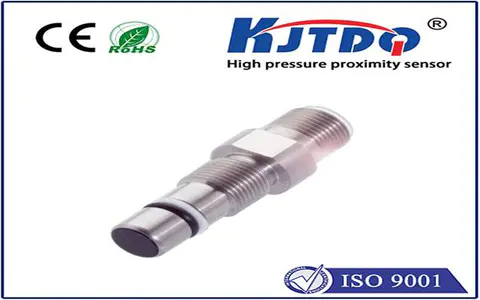

M12 high pressure proximity sensor shielded PNP NPN NO NC NO+NC IP68

这里可以自定义设置
M12 high pressure proximity sensor shielded PNP NPN NO NC NO+NC IP68
B站不支持收货地址
B站不支持库存规格
Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production.
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
该产品后台详情无内容

INDUCTIVE

PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size M12*50mm
Mounting Shielded
Sensing Distance SN [mm] 1.5mm
Housing material Stainless steel
Pressure endurable 500Bar
Operating voltage 10-36VDC
Output PNP/NPN NO/NC/ NO+NC
Ripple <10%
No Load Current <10mA
Max.Load Current 200mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 1KHz
Response Time 0.5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3%(Sr)/<3%(Sr)/<5%(Sr)
Protection Degree IP68
Operating Temperature -25℃-+85℃
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 200mA
Connection With M12 4 pin connector


Product Size

Wiring diagram
