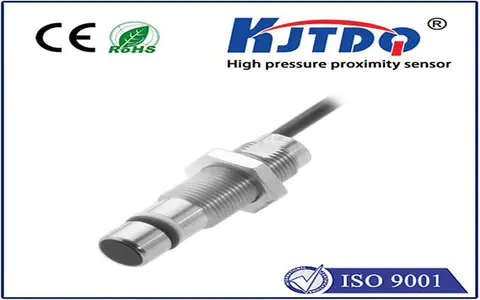

M12 high pressure proximity sensor shielded NO NC NO+NC Sn=1.5mm size M12*47mm

M12 high pressure proximity sensor shielded NO NC NO+NC Sn=1.5mm size M12*47mm

M12 high pressure proximity sensor shielded NO NC NO+NC Sn=1.5mm size M12*47mm
  • M12 high pressure proximity sensor shielded NO NC NO+NC Sn=1.5mm size M12*47mm
  • 5KJT dimension drawing.png
  • 5KJT connection diagram.jpg

M12 high pressure proximity sensor shielded NO NC NO+NC Sn=1.5mm size M12*47mm

Trade Terms
FOB Nanjing/Shanghai
Payment Terms
T/T, Western Union, PayPal
Delivery Time
3-15 working days for making sample. 7-20 working days for production.
Packing
Standard Export Cartons
Shipping
By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ
5PCS
Place of Origin
Nanjing City, Jiangsu Province, China
Certificate
CE,RoHS,ISO9001
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

INDUCTIVE

PROXIMITY SENSOR

KJT provide a full range of inductive sensors, mainly for the detection of metal objects. These products are widely used in packaging and plastics machinery, production lines and conveying systems. They come in various forms, with digital (SCR, transistor) and analog outputs. The inductive proximity sensors have round housing size of 3mm to 30mm, standard or enhanced sensing distance, shielded or unshielded form is optional.

Technical parameter
Size M12*47mm
Mounting Shielded
Sensing Distance SN [mm] 1.5mm
Housing material Stainless steel
Pressure endurable 500Bar
Operating voltage 10-36VDC
Output PNP/NPN NO/NC/ NO+NC
Ripple <10%
No Load Current <10mA
Max.Load Current 200mA
Leakage Current <0.01mA
Voltage Drop <1.5V
Switching Frequency 1KHz
Response Time 0.5ms
Switching Hysteresis <15%(Sr)
Repeat Accuracy <3%(Sr)/<3%(Sr)/<5%(Sr)
Protection Degree IP68
Operating Temperature -25℃-+85℃
Temperature Drift <10%(Sr)
Short Circuit Protection YES
Overload Trip Point 200mA
Connection With M12 4 pin connector


Product Size

Wiring diagram
